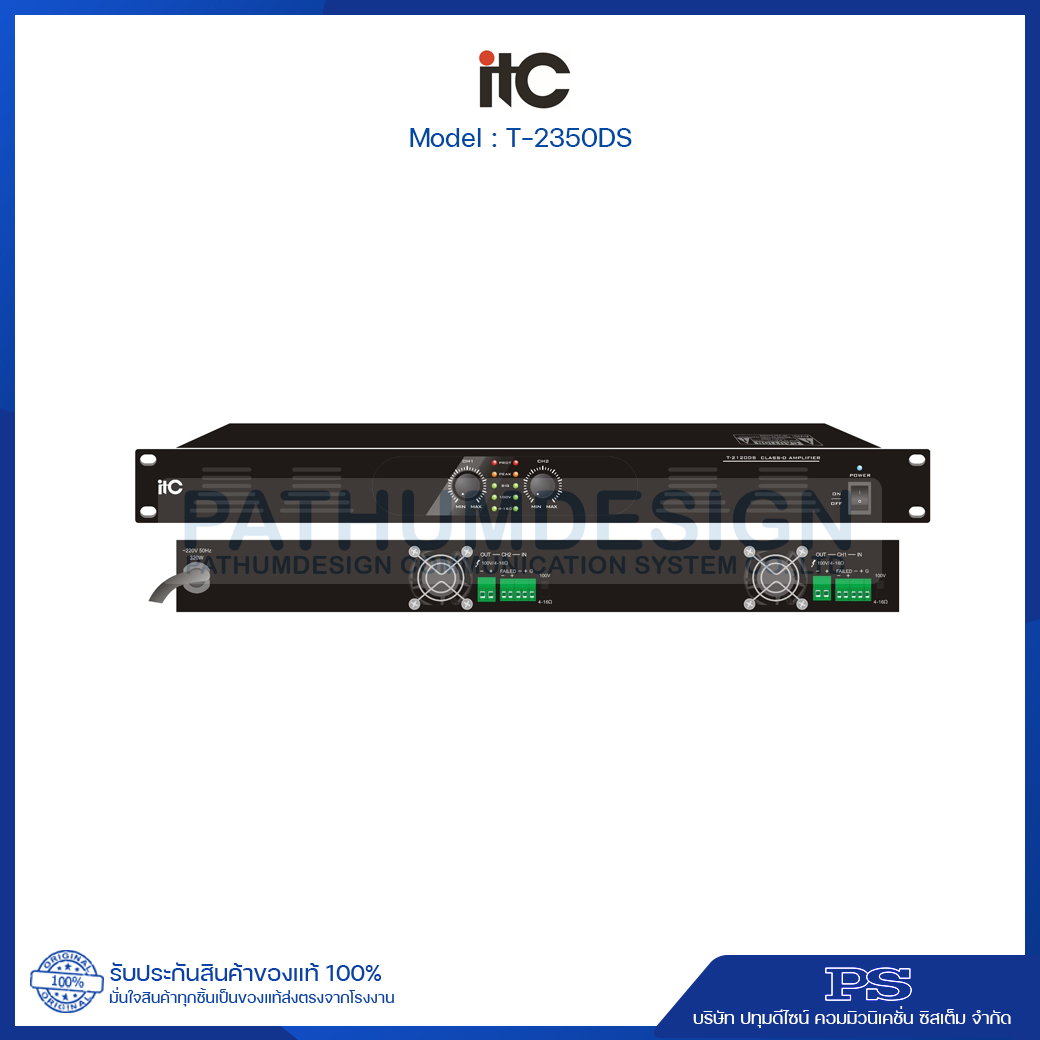

T-2350DS 2x350W, Class-D Amplifier 100V and 4-16 ohms

Description:

Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.

Features:
- Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%.

- Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment.

- 1U standard 19-inch industrial chassis design.

- Providing 2 channel of 100 v or 4-16 Ω output terminal wiring speaker.

- Without transformer output 100V and can switch constant resistance 4-16Ω output.

- The fault output function can remotely monitor the working state of amplifier
- The product has short circuit, overload and overheat protection.

- Support 2-channel independent power supply function.

- 85% high-efficiency amplifier with low power loss and heat output.

- 2-channel European terminal balanced input and 2-channel European terminal output.

Specifications:
