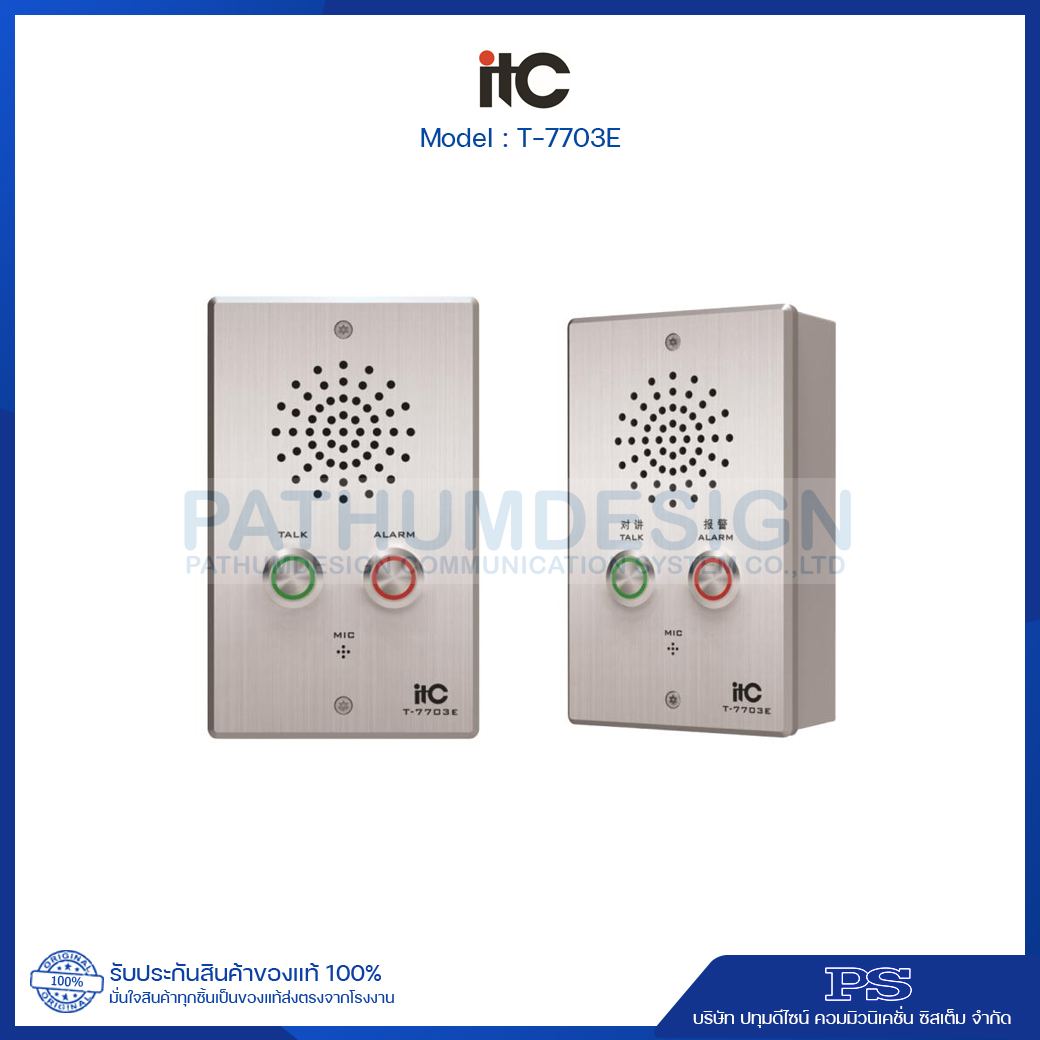

T-7703E IP Network Intercom Terminal with Alarm

Features

*  With embedded rectangular design, simple and smooth appearance, sophisticated lines and durable quality.

*  With embedded computer technology and DSP audio processing technology.

*  One button ask for help, can call the intercom mic of the duty room. Quick connection and easy operation

*  One button ask for alarm，this terminal can be used for alarm task trigger equipment.

*  Built-in microphone with high-sensitivity, with wide area for sound collection, and high sound reproduction.

*  Built-in 3W full-range monitor speaker, with loud and clear voice.

*  Support hands-free calling and broadcast receiving.

*  Support local electronic door lock and local alarm indicator ( select 1 from 2 options).

*  Support two channel local short-circuit signal input; linkage with 1 short-circuit output for monitor short circuit linkage.

*  Crimp DC power supply interface, external connect to 24V power adapter or centralized power supply.

*  Two installation methods: embedded and surface mounted.

*  Waterproof degree: Ip55.

*  With 1 line output, for connecting active speaker to achieve voice paging.

*  Support short-circuit signal input of security equipment, customized setting the time plan of patrol and sign in for the local area security.

*  Support panel button linkage with 1 short-circuit output or ring alarm, used to monitor short-circuit linkage or emergency tips.

*  Support disassemble panel alarm function, at the same time of dissemble panel alarm, link the short-circuit output of multiple devices from local and remote, and connect to alarm or police alarm horn speaker

*  The system supports remote hardware updating to the terminals, no need to go to the local terminal site, save a lot of maintenance work.

Specifications
