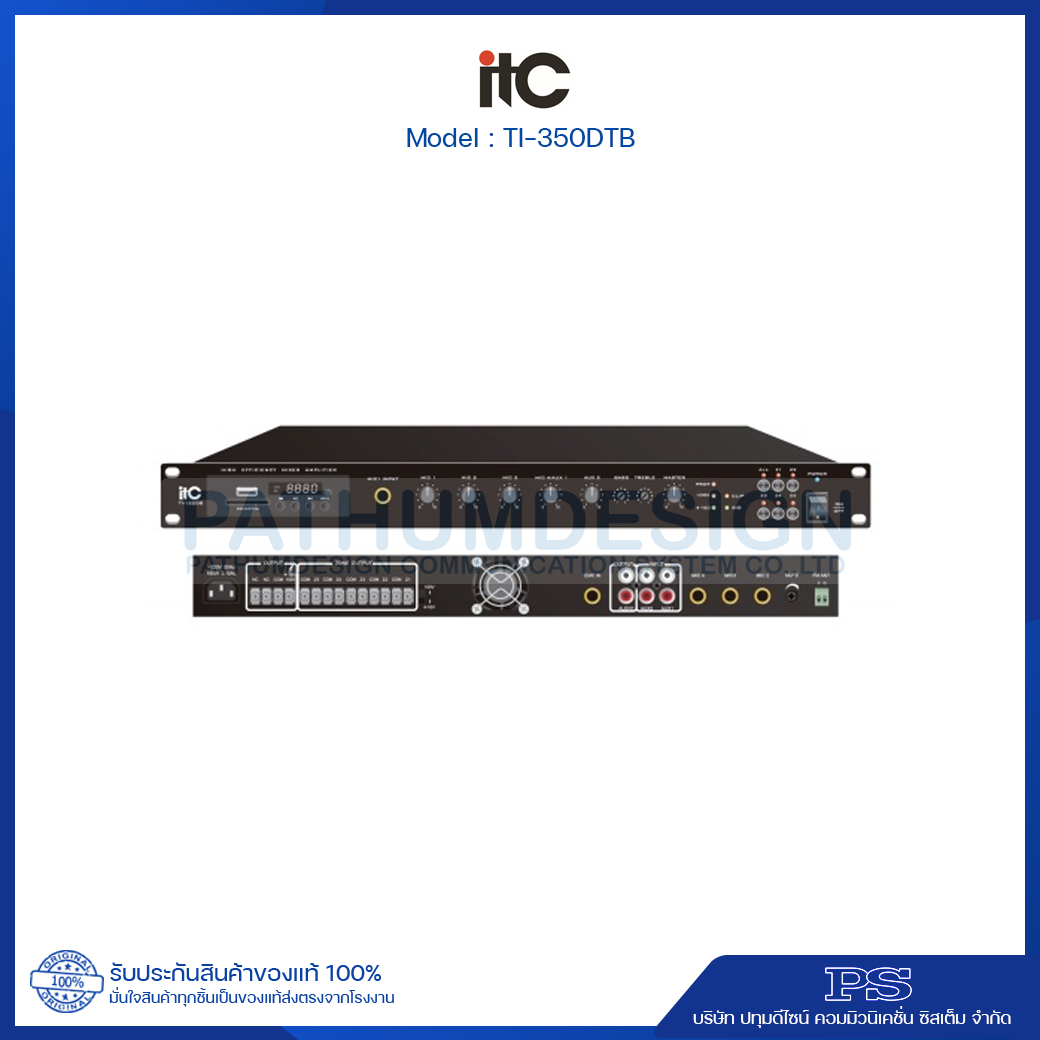

TI-350DTB 5 Zone Class-D Mixer Amplifier 240W with MP3/Tuner/Bluetooth & USB 4 mic, 2 Aux, 1 Emc

ITC PS TI-350DTB เพาเวอร์มิกเซอร์ 350 วัตต์ พร้อม MP3 / Tuner / Bluetooth & USB

Product Usages

Digital mixer amplifier with Mp3/TUNER/Bluetooth.Ideal for small & medium supermarkets, malls, and indoor places like cafe shop to play background musics.

Features

• Standard rack mounted design(1U) with delicate SMT technology.
• With Mp3/TUNER/Bluetooth, songs being played can be shown on the digital screen.
• With Mp3/TUNER/Bluetooth remote control function.
• 1 EMC input, 2 AUX inputs, 4 MIC inputs.
• Channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
•  Each input has independent volume adjustment, and the total volume has high pitch, bass adjustment and volume control.
• With electrical level and overload protection indicator.
• The device has good self-protection such as short circuit, overload and overheat.
• 2 kinds of output modes: 100V constant voltage output; 4-16Ω constant resistance output.
• With 5 zones selection.
• EMC input can activate partitioning zones.
• Perfect combined design for high efficiency& energy saving switch power and class-D amplifier, with high stability.
•  Voltage Power Supply: 180V-240V
• Optional standby power supply 24V without delay for toggling pictures.

Specification

• Model : TI-350DTB
• Output : 4-16Ω, 100V
• Output Power : 350W
• Input Sensitivity & Impedance :
  MIC1, 2, 3, 4 Input:5mV/600Ω  Unbalanced 6.3 connector
  AUX1, 2 Input: 350mV/10KΩ  Unbalanced RCA connector
• EMC Input: 775mV/10KΩ  Unbalanced 6.3 connector
• Output Sensitivity & Soure Impedance : MIX OUT:1000mV/470Ω  Unbalanced RCA connector
• Tone : Bass: ±10dB at 100Hz    Treble: ±10dB at 10KHz
• Frequency Response : 50~16KHz(+1dB,-3dB)
• S/N Rate : MIC1, 2, 3: 66dB; AUX1, 2: 80dB
• THD : Less than 0.5%(at 1KHz,1/3 Rated Power)
• Mute Function : EMC>MIC1>MIC2, MIC3, AUX1, AUX2
• Capacity : 5 Zones
• Channel Crosstalk  : ≥50dB
• Attenuation
• Heat Dissipation : The fan starts work when powered on. Winds flank in and out  from the back, can lead to strong cooling effect.  with infinitely variable speed.
• Protection : Short circuit, overload and overheat
• Power Supply : ~220-240V /50Hz
• Power Consumption : 450W
• Dimension : 484×260×44mm
• Weight : 4.0Kg
