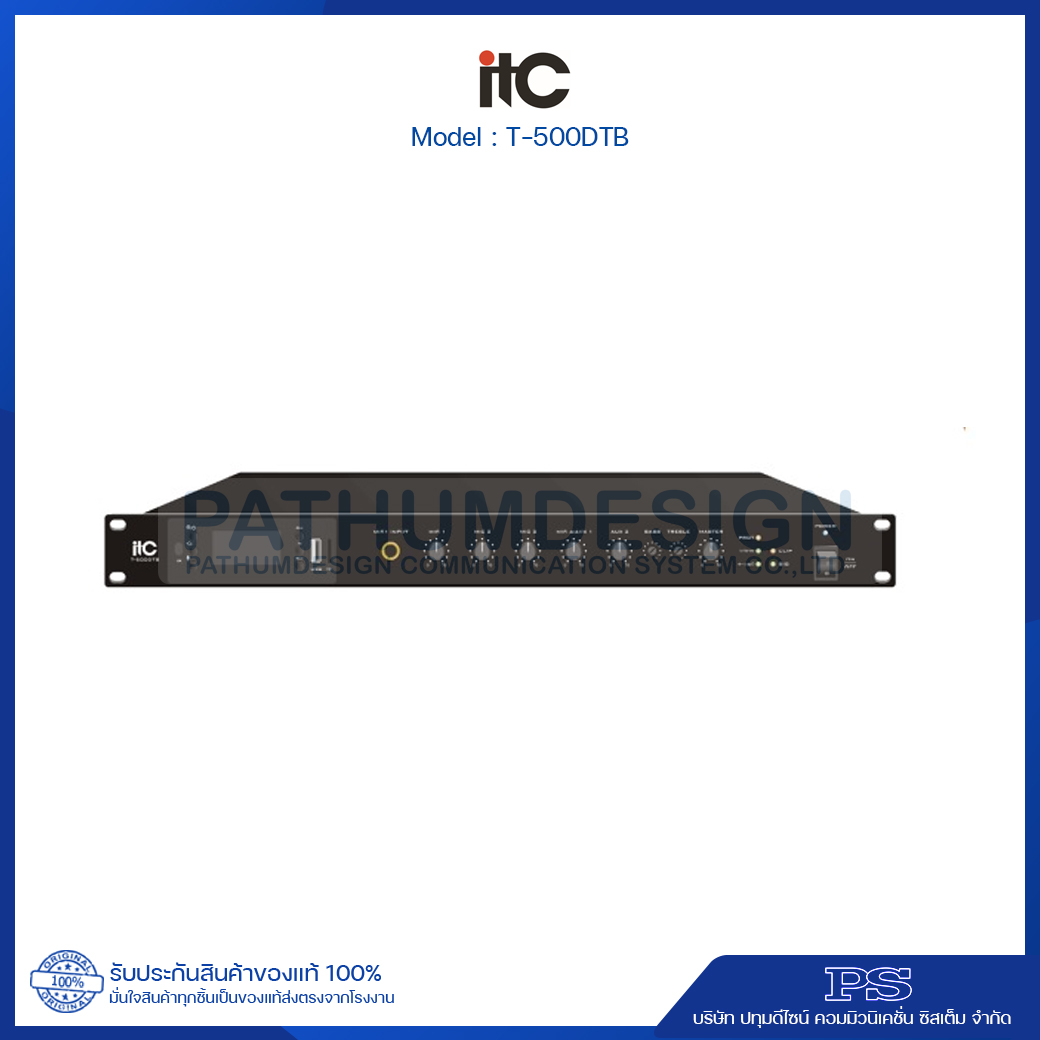

T-500DTB 500W Mixer Amplifier Class-D with MP3/Tuner/Bluetooth&USB, 4 Mix, 2 Aux, 1 Emc

ITC PS T-500DTB เพาเวอร์มิกเซอร์ 500 วัตต์ 4-16 โอห์ม 100V Line พร้อม MP3 / Tuner / Bluetooth & USB

Product Introduction

It is the mixer amplifier with mp3/TUNER/Bluetooth for small and medium sized background music occasion such as small supermarkets, shopping malls, and cafes.

Features

• Standard rack mounted design (1U), SMT technology.
• Support mp3/TUNER/Bluetooth remote control function, and the remote control distance is up to 8 m.
• With USB interface and SD card interface, integrated MP3 player module, with automatic priority playing audio function, and digital screen can display the currently playing music of USB
• Integrated Bluetooth module to support to play music via Bluetooth mobile phone.
• Integrated TUNER module, with FM radio antenna port.
• 1 channel EMC input, 2 channels AUX input, 4 channels MIC input.
• Channel priority: EMC >MIC1>MIC2, MIC3, AUX1, AUX2
• Each channel has independent volume control function; master input has volume control and treble/bass control
• The machine is equipped with level indication, overload and protection indicator.
• The device has good self-protection such as short circuit, overload and overheating.
• Two output modes: constant voltage output 100V, 4-16Ω.
• Energy-efficient switching power supply combines with energy-saving and ultra-stable design of Class D amplifiers
• Wide voltage supply: 220V-240V can work normally; Support backup power supply 24V no delay switching.

Specification

• Model : T-500DTB
• Output : 4-16Ω, 100V
• RMS Power  : 500W
• Input Sensitivity and Impedance :
• MIC1,2,3,4 input: 5mV / 600Ω unbalanced 6.3 connection terminal;
• AUX1,2 input: 500mV / 10KΩ unbalanced RCA connection terminal;
• EMC input: 775mv / 10KΩ unbalanced 6.3 connection terminal
• Output Sensitivity & Source Impedance : MIX OUT : 1000mV / 470Ω unbalanced RCA connection terminal
• Tone :
  Bass: ± 10dB at 100Hz;
  Treble: ± 10dB at 10KHz
• Frequency Response : 50Hz ~16KHz (+ 1dB, -3dB)
• SNR : MIC1,2,3 : 66dB; AUX1,2 : 80dB
• THD : < 0.5% (at 1KHz, 1/3 rated power)
• Mute Function : MIC 1 is prior to MIC2-4, AUX1-2 audio input; EMC is prior to all audio inputs
• Channel Crosstalk Attenuation : ≥50dB
• Heat Dissipation : Side-in and rear-out forced fan cooling; fan starts automatically when the device is turned on; infinitely variable speed
• Protection : Overheat protection, overcurrent protection, short circuit protection
• Power Supply : ~ 220 -240V/ 50Hz
• Power Consumption : 650W
• Dimension : 484 ×300 × 44 mm
• Weight : 4.1 Kg
