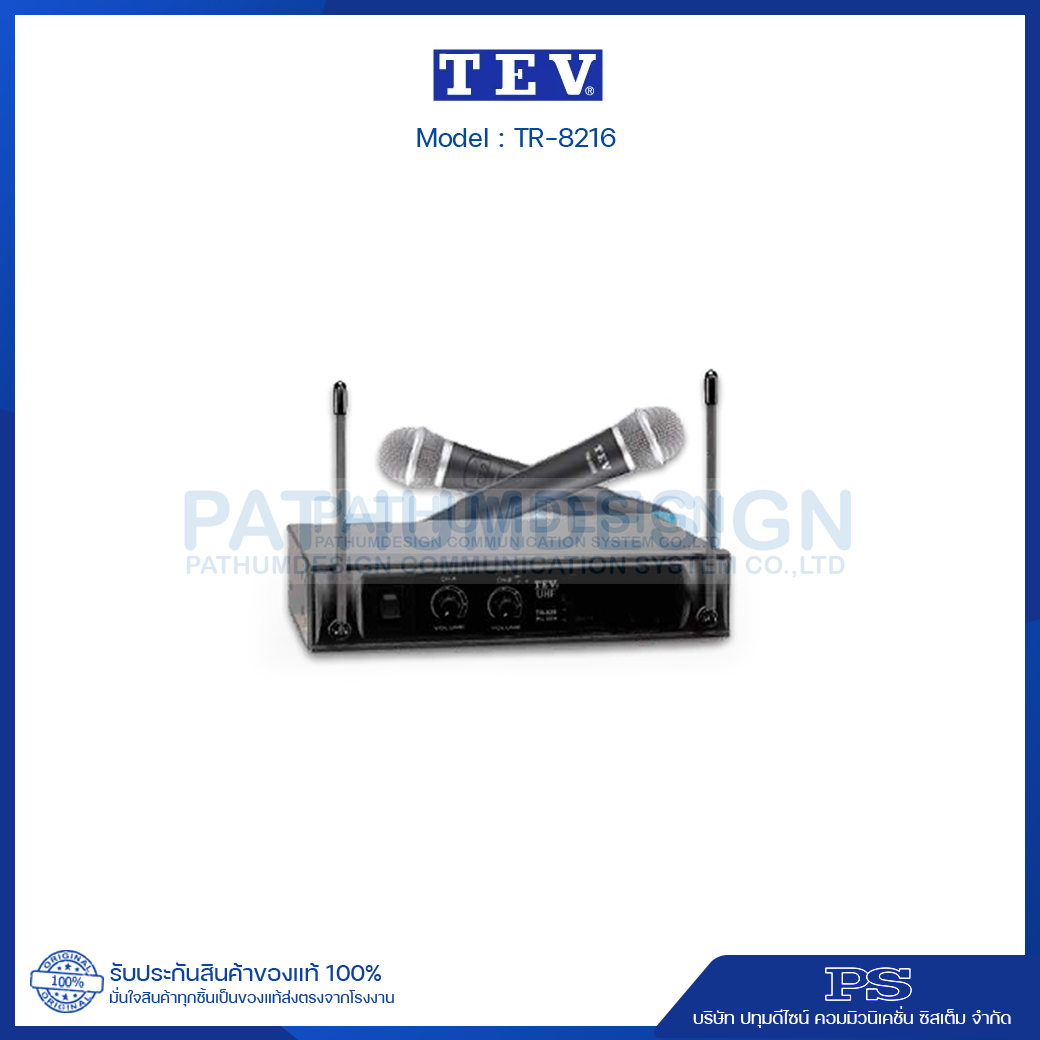

TR-8216 Sinsle Channel Wireless Mic Receiver (16ch.)

SPECIFICATIONS

Carrier Frequency Range: UHF Band: A CH :794-806MHz
UHF Band: B CH :754-770MHz
Oscillation mode: PLL, 16-channel selection
Receive mode: diversity reception
Frequency stability: + / - 0.005%

Demodulation Mode: FM
LCD Liquid Crystal Display: Display ON-OFF and battery capacity
Audio Response: 50Hz - 15KHz
RF Sensitivity: 10 dBuV
Audio output: Balanced and unbalanced outputs
RF Power Output: 10mW (max.)
Signal to noise ratio:> 94 dB
Power supply: DC 12V-18V
Receiver appearance: 210 x 44 x 165 mm
Battery Specifications: DC1.5 V x 2
Microphone Dimensions: 55 x 300 mm

Carrier Frequency Range: UHF Band: A CH :794-806MHz
UHF Band: B CH :754-770MHz
Oscillation mode: PLL, 16-channel selection
Receive mode: diversity reception
Frequency stability: + / - 0.005%

Demodulation Mode: FM
LCD Liquid Crystal Display: Display ON-OFF and battery capacity
Audio Response: 50Hz - 15KHz
RF Sensitivity: 10 dBuV
Audio output: Balanced and unbalanced outputs
RF Power Output: 10mW (max.)
Signal to noise ratio:> 94 dB
Power supply: DC 12V-18V
Receiver appearance: 210 x 44 x 165 mm
Battery Specifications: DC1.5 V x 2
Microphone Dimensions: 55 x 300 mm
